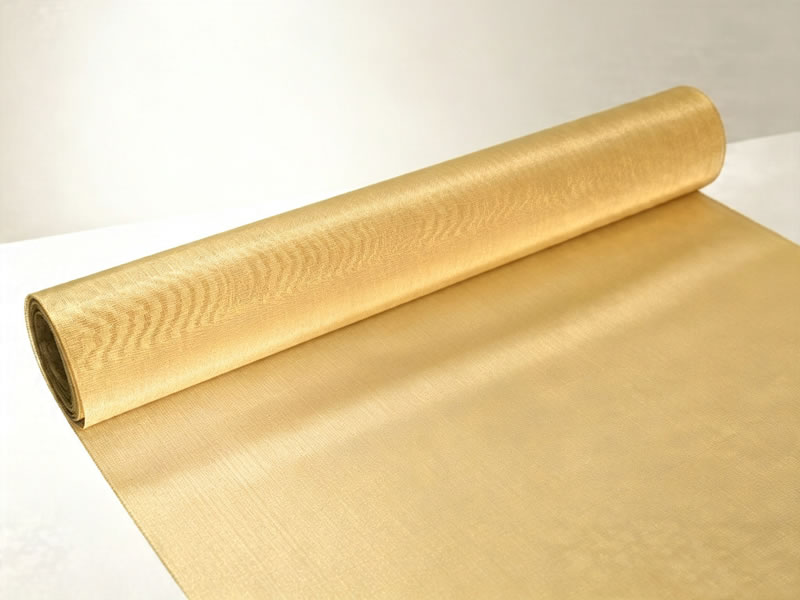

Brass and phosphor bronze wire mesh are frequently used in sieving diversified pellet, powder, porcelain clay and glass.

We are capable of supplying brass wire mesh from 1-200 mesh, and phosphor bronze wire mesh from 1-500 mesh. The following specifications are listed for your reference:

Mesh	Wire Dia.			Opening (mm)
	SWG	mm	1nch
250	48	0.041	0.0016	0.061
300	49	0.031	0.0012	0.054
325	49	0.031	0.0012	0.047
350	49	0.031	0.0012	0.042
400	49	0.031	0.0012	0.033
450	49	0.031	0.0012	0.029
500	50	0.025	0.0010	0.026

Note: We can provide brass and phosphor bronze wire mesh with the width from 0.6m to 1.3m, and the length from 15m to 100m.

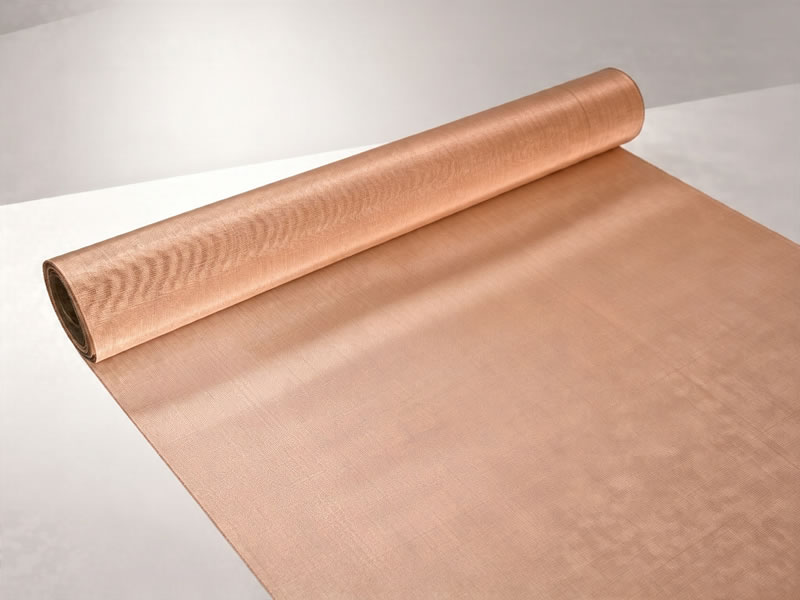

Meanwhile, we can also produce phosphor bronze wire mesh with the following specifications:

Mesh	SWG	Wire Dia. mm	Wire Dia. inch	Opening (mm)
6	22	0.711	0.028	3.522
8	23	0.61	0.024	2.565
10	25	0.508	0.02	2.032
12	26	0.457	0.018	1.66
14	27	0.417	0.016	1.397
16	29	0.345	0.014	1.243
18	30	0.315	0.012	1.096
20	30	0.315	0.0124	0.955
22	30	0.315	0.0124	0.84
24	30	0.315	0.0124	0.743
26	31	0.295	0.0116	0.682
28	31	0.295	0.0116	0.612
30	32	0.247	0.011	0.573
32	33	0.254	0.01	0.54
34	34	0.234	0.0092	0.513
36	34	0.234	0.0092	0.472
38	35	0.213	0.0084	0.455
40	36	0.193	0.0076	0.442
42	36	0.193	0.0076	0.412
44	37	0.173	0.0068	0.404
46	37	0.173	0.0068	0.379
48	37	0.173	0.0068	0.356
50	37	0.173	0.0068	0.335
60x50	36	0.193	0.0076
60x50	37	0.173	0.0068
60	37	0.173	0.0068	0.25
70	39	0.132	0.0052	0.231
80	40	0.122	0.0048	0.196
90	41	0.112	0.0044	0.17
100	42	0.102	0.004	0.152
120x108	43	0.091	0.0036
120	44	0.081	0.0032	0.131
140	46	0.061	0.0024	0.12
150	46	0.061	0.0024	0.108
160	46	0.061	0.0024	0.098
180	47	0.051	0.002	0.09
200	47	0.051	0.002	0.076
